5. Syntax Highlighter and Color Settings Page

5.1.

定义语法高亮显示器

package com.simpleplugin;

import com.intellij.lexer.Lexer;
import com.intellij.openapi.editor.*;
import com.intellij.openapi.editor.colors.TextAttributesKey;
import com.intellij.openapi.fileTypes.SyntaxHighlighterBase;
import com.intellij.psi.TokenType;
import com.intellij.psi.tree.IElementType;
import com.simpleplugin.psi.SimpleTypes;
import org.jetbrains.annotations.NotNull;

import static com.intellij.openapi.editor.colors.TextAttributesKey.createTextAttributesKey;

public class SimpleSyntaxHighlighter extends SyntaxHighlighterBase {
  public static final TextAttributesKey SEPARATOR =
      createTextAttributesKey("SIMPLE_SEPARATOR", DefaultLanguageHighlighterColors.OPERATION_SIGN);
  public static final TextAttributesKey KEY =
      createTextAttributesKey("SIMPLE_KEY", DefaultLanguageHighlighterColors.KEYWORD);
  public static final TextAttributesKey VALUE =
      createTextAttributesKey("SIMPLE_VALUE", DefaultLanguageHighlighterColors.STRING);
  public static final TextAttributesKey COMMENT =
      createTextAttributesKey("SIMPLE_COMMENT", DefaultLanguageHighlighterColors.LINE_COMMENT);
  public static final TextAttributesKey BAD_CHARACTER =
      createTextAttributesKey("SIMPLE_BAD_CHARACTER", HighlighterColors.BAD_CHARACTER);

  private static final TextAttributesKey[] BAD_CHAR_KEYS = new TextAttributesKey[]{BAD_CHARACTER};
  private static final TextAttributesKey[] SEPARATOR_KEYS = new TextAttributesKey[]{SEPARATOR};
  private static final TextAttributesKey[] KEY_KEYS = new TextAttributesKey[]{KEY};
  private static final TextAttributesKey[] VALUE_KEYS = new TextAttributesKey[]{VALUE};
  private static final TextAttributesKey[] COMMENT_KEYS = new TextAttributesKey[]{COMMENT};
  private static final TextAttributesKey[] EMPTY_KEYS = new TextAttributesKey[0];

  @NotNull
  @Override
  public Lexer getHighlightingLexer() {
    return new SimpleLexerAdapter();
  }

  @NotNull
  @Override
  public TextAttributesKey[] getTokenHighlights(IElementType tokenType) {
    if (tokenType.equals(SimpleTypes.SEPARATOR)) {
      return SEPARATOR_KEYS;
    } else if (tokenType.equals(SimpleTypes.KEY)) {
      return KEY_KEYS;
    } else if (tokenType.equals(SimpleTypes.VALUE)) {
      return VALUE_KEYS;
    } else if (tokenType.equals(SimpleTypes.COMMENT)) {
      return COMMENT_KEYS;
    } else if (tokenType.equals(TokenType.BAD_CHARACTER)) {
      return BAD_CHAR_KEYS;
    } else {
      return EMPTY_KEYS;
    }
  }
}

5.2.

定义语法高亮显示器工厂

package com.simpleplugin;

import com.intellij.openapi.fileTypes.*;
import com.intellij.openapi.project.Project;
import com.intellij.openapi.vfs.VirtualFile;
import org.jetbrains.annotations.NotNull;

public class SimpleSyntaxHighlighterFactory extends SyntaxHighlighterFactory {
  @NotNull
  @Override
  public SyntaxHighlighter getSyntaxHighlighter(Project project, VirtualFile virtualFile) {
    return new SimpleSyntaxHighlighter();
  }
}

5.3.

注册语法高亮显示器工厂

<lang.syntaxHighlighterFactory language="Simple" implementationClass="com.simpleplugin.SimpleSyntaxHighlighterFactory"/>

5.4.

运行该项目

语法荧光笔

5.5.

定义颜色设置页面

package com.simpleplugin;

import com.intellij.openapi.editor.colors.TextAttributesKey;
import com.intellij.openapi.fileTypes.SyntaxHighlighter;
import com.intellij.openapi.options.colors.*;
import org.jetbrains.annotations.*;

import javax.swing.*;
import java.util.Map;

public class SimpleColorSettingsPage implements ColorSettingsPage {
  private static final AttributesDescriptor[] DESCRIPTORS = new AttributesDescriptor[]{
      new AttributesDescriptor("Key", SimpleSyntaxHighlighter.KEY),
      new AttributesDescriptor("Separator", SimpleSyntaxHighlighter.SEPARATOR),
      new AttributesDescriptor("Value", SimpleSyntaxHighlighter.VALUE),
  };

  @Nullable
  @Override
  public Icon getIcon() {
    return SimpleIcons.FILE;
  }

  @NotNull
  @Override
  public SyntaxHighlighter getHighlighter() {
    return new SimpleSyntaxHighlighter();
  }

  @NotNull
  @Override
  public String getDemoText() {
    return "# You are reading the \".properties\" entry.\n" +
           "! The exclamation mark can also mark text as comments.\n" +
           "website = http://en.wikipedia.org/\n" +
           "language = English\n" +
           "# The backslash below tells the application to continue reading\n" +
           "# the value onto the next line.\n" +
           "message = Welcome to \\\n" +
           "          Wikipedia!\n" +
           "# Add spaces to the key\n" +
           "key\\ with\\ spaces = This is the value that could be looked up with the key \"key with spaces\".\n" +
           "# Unicode\n" +
           "tab : \\u0009";
  }

  @Nullable
  @Override
  public Map<String, TextAttributesKey> getAdditionalHighlightingTagToDescriptorMap() {
    return null;
  }

  @NotNull
  @Override
  public AttributesDescriptor[] getAttributeDescriptors() {
    return DESCRIPTORS;
  }

  @NotNull
  @Override
  public ColorDescriptor[] getColorDescriptors() {
    return ColorDescriptor.EMPTY_ARRAY;
  }

  @NotNull
  @Override
  public String getDisplayName() {
    return "Simple";
  }
}

5.6.

注册颜色设置页面

<colorSettingsPage implementation="com.simpleplugin.SimpleColorSettingsPage"/>

5.7.

运行该项目

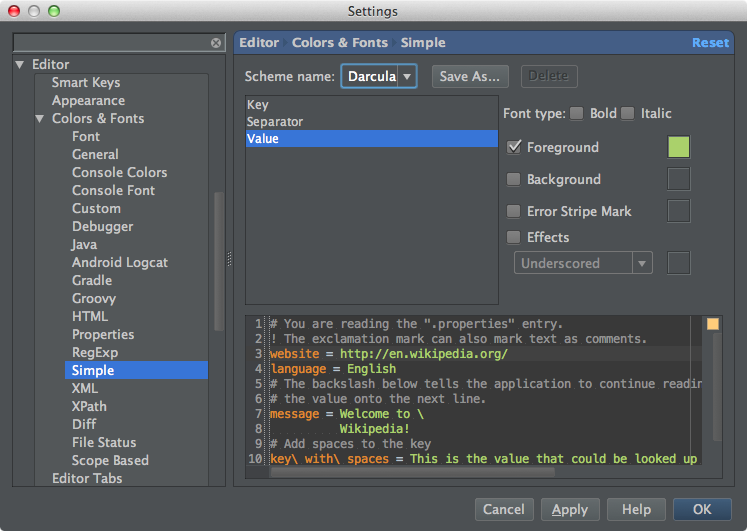

颜色设置页面
